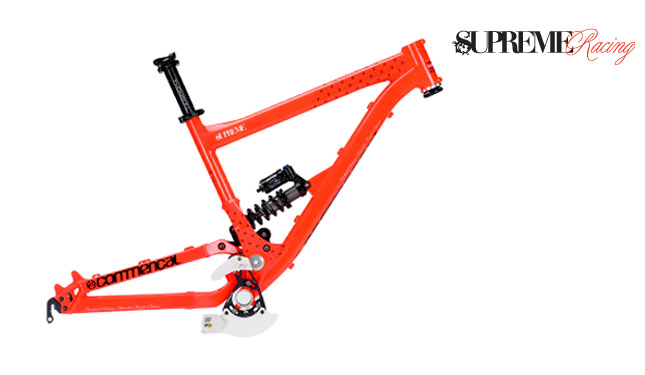

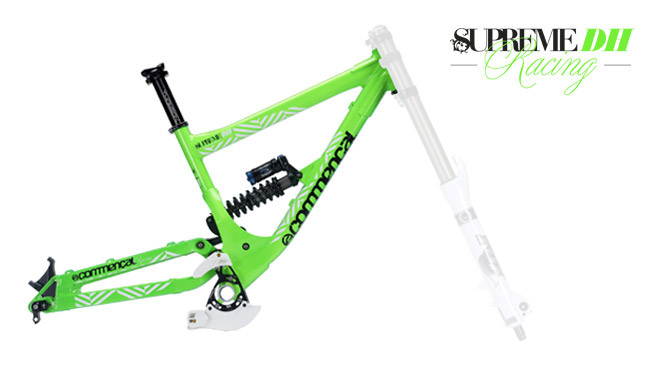

A performance powerhouse, proven in 5 World Cup victories and a historic double win at the World Championships. The 8 inch
travel Supreme DH currently dominates the pro circuit in the
hands of team riders Rachel and Gee Atherton. The Supreme DH
adapts easily to any type of track, thanks to its Contact System®
suspension geometry, adjustable head angle and adjustable
wheelbase.
|
•
•
•
•
•
•
•
•
•
•
|
8 inches travel, short seat tube and low center of gravity for added stability/control
Main pivot located inside the interrupted seat tube for chain guide clearance, lateral rigidity and pedaling efficiency
Contact System linkage offers highly progressive spring curve and ideal small-to-large bump absorption with minimal bobbing and kickback
The four cartridge bearing swingarm pivot integrates with a forged bottom bracket case for perfect alignment, while an oversized axle rests on two stainless steel rings (inserted inside the forged section of the front triangle so as to avoid any risk of ovalizing the frame)
Swingarm incorporates 15mm fore-aft wheelbase adjusters, with 150mm hub spacing, replaceable left/right 12mm thru-axle dropouts and 3-position post mount disc caliper mount to fine tune handling during braking
Includes a Fox DHX RC4 coil rear shock with piggyback, Thompson Elite seatpost, and e.thirteen LG1+ chainguide
Recommended fork length: 200mm
Features one degree (+/-) and zero degree adjustable head angle sleeves
Weight: 9.92 lbs without shock
MSRP $2899.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|
The perfect frameset for the descender who wants a light, flickable Downhill bike that can still climb well.
|
•
•
•
•
•
•
•
•
•
•
|
6.3 inches travel, short seat tube and low center of gravity for added stability/control
Main pivot located inside the interrupted seat tube for chain guide clearance, lateral rigidity and pedaling efficiency
Contact System linkage offers highly progressive spring curve and ideal small-to-large bump absorption with minimal bobbing and kickback
The four cartridge bearing swingarm pivot integrates with a forged bottom bracket case for perfect alignment, while an oversized axle rests on two stainless steel rings (inserted inside the forged section of the front triangle so as to avoid any risk of ovalizing the frame)
Swingarm includes replaceable left/right dropouts (one set 10mm standard and one set of 12mm)
Includes a Fox DHX 3RC2 coil rear shock with piggyback, Thompson Elite seatpost, and e.thirteen LG1+ chainguide
Recommended fork length: 160mm-180mm
Features one degree (+/-) and zero degree adjustable head angle sleeves
Weight: 8.84 lbs without shock
MSRP $2449.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|

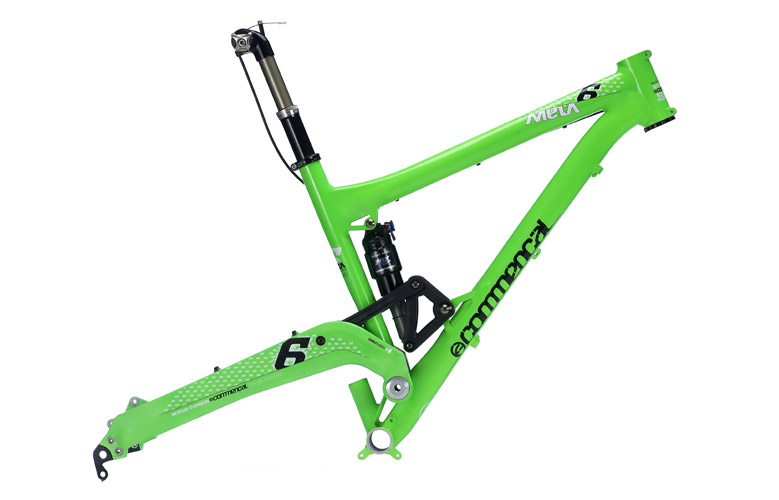

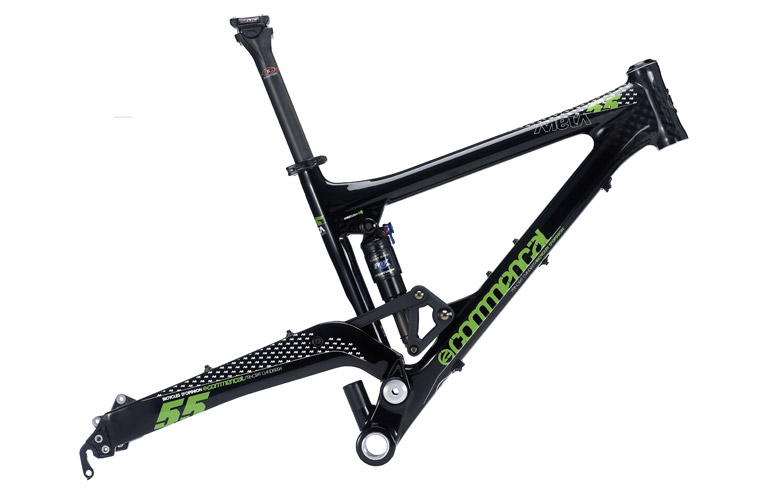

6" travel Enduro/Freeride bike with super light, torsionally stiff carbon rear swingarm.
|
•
•
•
•
•
•
•
•
•
|
Contact System suspension design means lots of small bump sensitivity for incredible grip and traction, but with capacity to absorb big impacts without bottoming out or pedal induced bob
Aluminum front triangle has suspension-independent front derailleur post, gusseted headtube
The four cartridge bearing swingarm pivot integrates with a forged bottom bracket case for perfect alignment, while an oversized axle rests on two stainless steel rings (inserted inside the forged section of the front triangle so as to avoid any risk of ovalizing the frame)
Features one degree adjustable head angle sleeve on S/M and one-half degree (+/-) sleeve on L/XL. Zero degree sleeve also included
Includes Fox RP23 XV rear shock, removable rear hangers (one set 10mm standard and one 12mm thru-axle set), adjustable seatpost remote cable guides, Crank Brothers Joplin seatpost, ISCG-05 tabs
Recommended fork length: 140mm-160mm
Features one degree (+/-) and zero degree adjustable head angle sleeves
Weight: 7.41 lbs without shock
MSRP $2499.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|
Hailed as one of the world's best all-mountain framesets, the 2010 Meta 5 adds carbon fiber to the mix, raising the bar on performance. With the same geometry as the 2009 Meta 5, and a new 5.79 lb all carbon frame, this bike is just as happy climbing up hill as it is rocketing back down.
|
•
•
•
•
•
•
•
•
•
|
New full carbon All Mountain frame, stiffer, lighter, stronger
Contact System suspension design means lots of small bump sensitivity for incredible grip and traction, but with capacity to absorb big impacts without bottoming out or pedal induced bob
Front triangle has suspension-independent front derailleur post
The four cartridge bearing swingarm pivot integrates with a forged bottom bracket case for perfect alignment, while an oversized axle rests on two stainless steel rings (inserted inside the forged section of the front triangle so as to avoid any risk of ovalizing the frame)
Includes Fox RP23 rear shock, headset , Easton EC90 CNT seatpost
Recommended fork length: 140mm
Features one degree (+/-) and zero degree adjustable head angle sleeves
Weight: 5.79 lbs without shock
MSRP $2849.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|

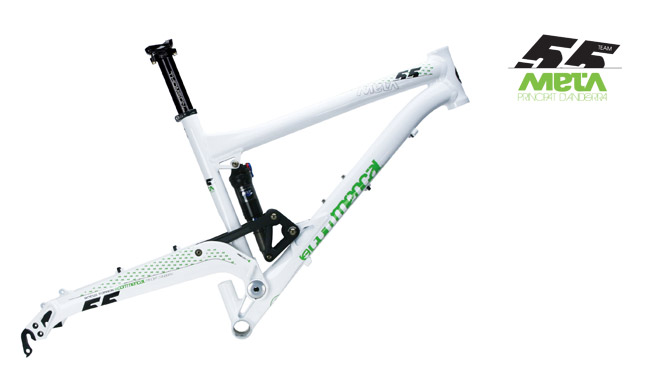

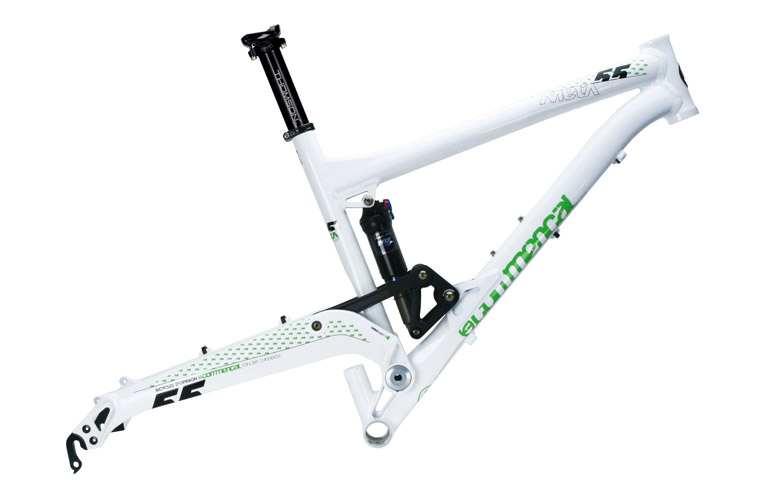

Commencal's most popular and versatile bike, acclaimed by the media as an agile climber and confident descender
|
•
•
•
•
•
•
•
•
|
Contact System suspension design means lots of small bump sensitivity for incredible grip and traction, but with capacity to absorb big impacts without bottoming out or pedal induced bob
Front triangle has suspension-independent front derailleur post
The four cartridge bearing swingarm pivot integrates with a forged bottom bracket case for perfect alignment, while an oversized axle rests on two stainless steel rings (inserted inside the forged section of the front triangle so as to avoid any risk of ovalizing the frame)
Includes Fox RP2 rear shock, standard 10mm removable rear hangers, Thompson Elite seatpost, headset
Recommended fork length: 140mm
Features one degree (+/-) and zero degree adjustable head angle sleeves
Weight: 7.3 lbs without shock
MSRP $1599.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|

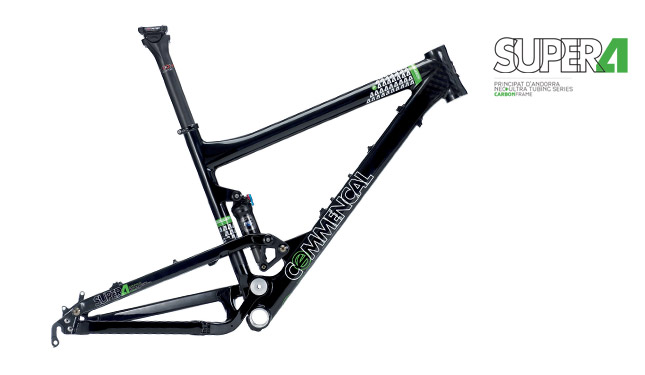

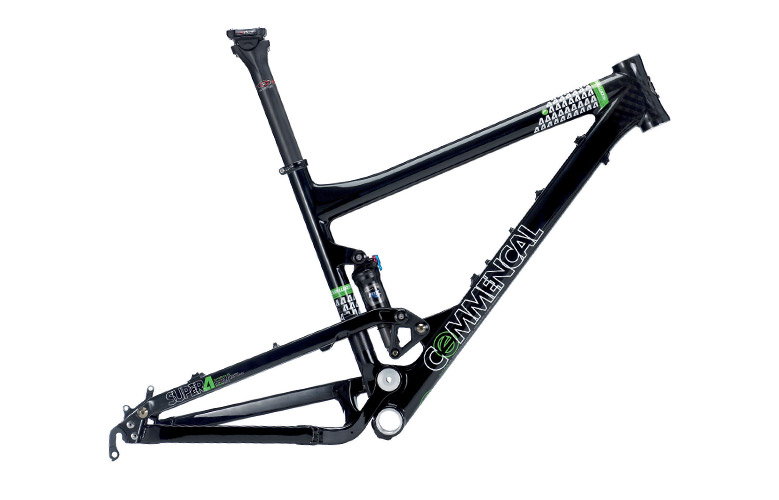

All new 4" travel full carbon fiber Cross Country race weapon.
|
•
•
•
•
•
•
•
•
|
Contact System suspension design means lots of small bump sensitivity for incredible grip and traction, but with capacity to absorb big impacts without bottoming out or pedal induced bob
Front triangle has suspension-independent front derailleur post
The single pivot integrates with the bottom bracket case for perfect alignment, while an oversized axle rests on two stainless steel rings (inserted inside the front triangle so as to avoid any risk of ovalizing the frame) and pivots on 3 cartridge bearings (2-L/1-R)
Includes removable rear hangers (one set standard 10mm dropouts), Fox Float RP23, Tange integrated headset, Easton EC 90 CNT seatpost
Recommended fork length: 120mm-140mm
Features one degree (+/-) and zero degree adjustable head angle sleeves
Weight: 4.81 lbs without shock
MSRP $2650.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|
Commencal's state-of-the-art full carbon Cross-Country race frame features a unique geometry that climbs and descends with confidence.
|
•
•
•
•
•
•
•
|
Premium Toray-T600 12K carbon filament sheets preimpregnated with resin allow fewer carbon layers for optimal strength-to-weight ratio and increased shock absorption for all-day comfort
Ovalized chainstays offer slight vertical flex for added suspension feel
Frame includes removable 10mm derailleur hanger, seat collar and a Thomson seatpost
Recommended fork length: 100mm-120mm
Features one degree (+/-) and zero degree adjustable head angle sleeves
Weight: 2.6 lbs
MSRP $1899.00 |
|
ZOOM
GEOMETRY
|
|
 |
|

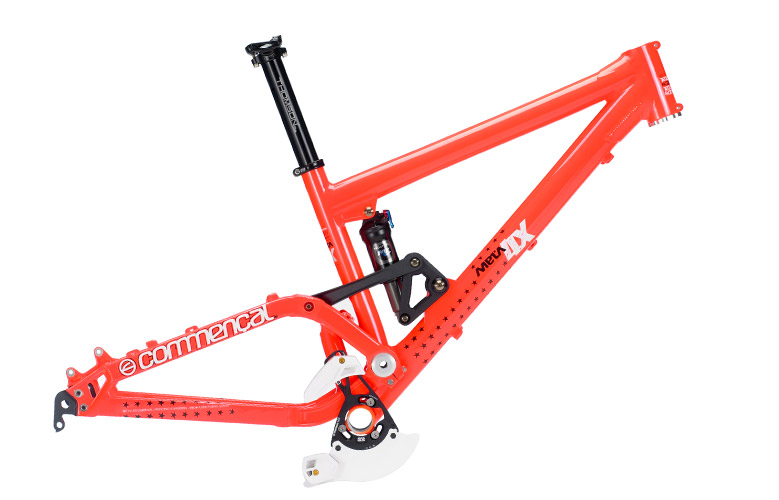

4-inch travel 4-Cross/Freeride full suspension bike designed with input from Cedric Gracia, and field tested at the World Cup races by Dan Atherton
|
•
•
•
•
•
•
•
|
Enormous swingarm axle pivots on four cartridge bearings
Contact System rod/rocker suspension linkage is tuned for the optimal spring rate, offering more useable travel without the dreaded "bob"
Includes Fox Float RP23 rear shock, e.thirteen LG1+ chain guide, Thompson Elite seatpost and replaceable 10mm vertical dropouts (drive and non-drive)
Features one degree (+/-) and zero degree adjustable head angle sleeves
Recommended fork length: 100mm-140mm
Weight: 7.89 lbs without shock
MSRP $1899.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|

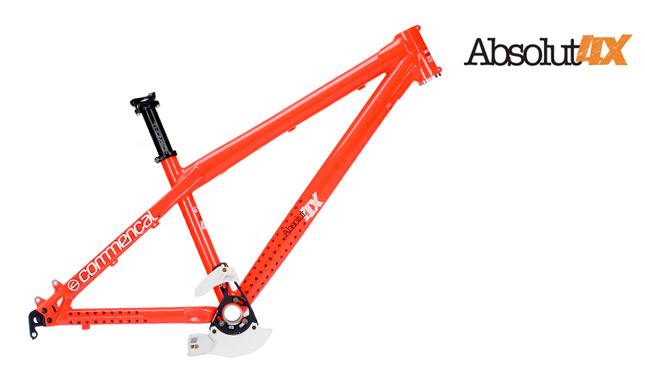

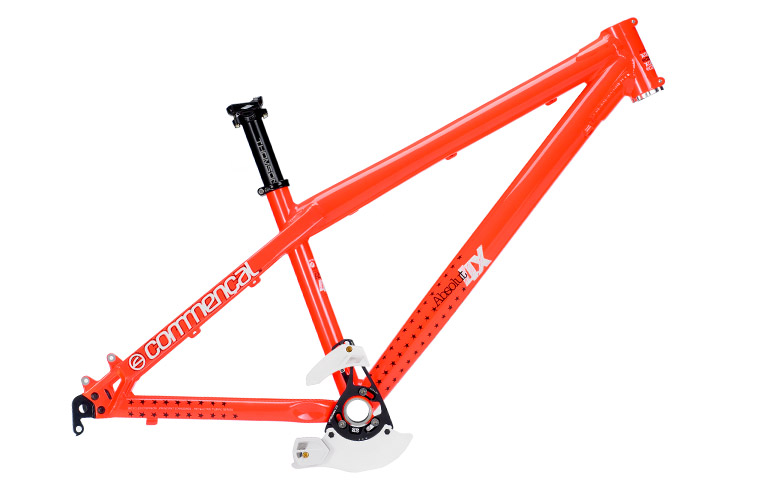

4-Cross race hardtail frame, designed with input from Cedric Gracia
|
•
•
•
•
•
•
|
Stiff, light Nuts AL alloy tubing with super short chainstays
The head tube angle is adjustable using the included headtube sleeves. Black sleeves change the angle by either + or - 1 degree, silver ones are zero degree. 100mm travel fork recommended
Also includes ISCG chain guide mount, removable rear hangers (two sets of 10mm standard), seat tube clamp, E13 LG1+ chain guide, and a Thomson Elite 31.6 x 367mm seatpost
Weight: 3.9lbs
MSRP $799.00 |
|
ZOOM
GEOMETRY
|
|
 |
|

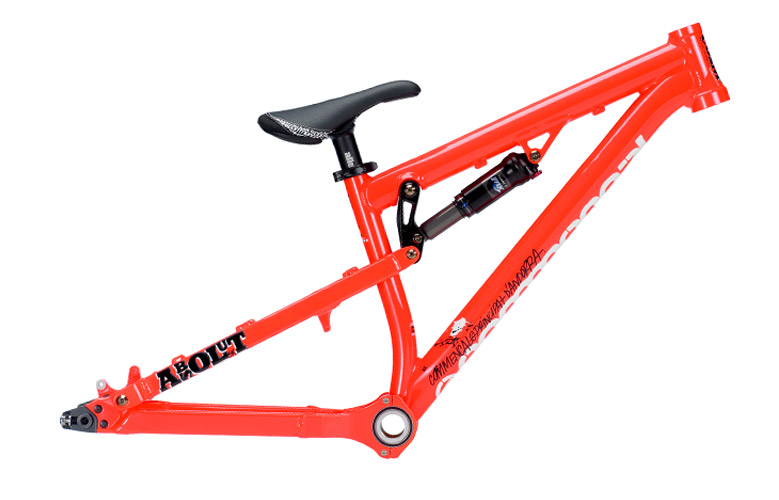

5.5 inch travel Slope Style full-suspension frameset designed with input from Cedric Gracia.
|
•
•
•
•
•
•
|
Unique wingarm pivots around the BB for geared or singlespeed use
Stiff, light Nuts AL alloy tubing with super short chainstays
Removeable rear hangers (one set of 10mm standard, one set of 10mm horizontal), seat tube clamp, FSA tapered 1-1/8" / 1.5" Integrated-type headset, Fox Float R shock, Commencal Pivotal saddle and seatpost
Recommended for use with 140mm travel fork
Weight: 6.9 lbs without shock
MSRP $1949.00 |
|
ZOOM
GEOMETRY
CONTACT SYSTEM |
|
 |
|

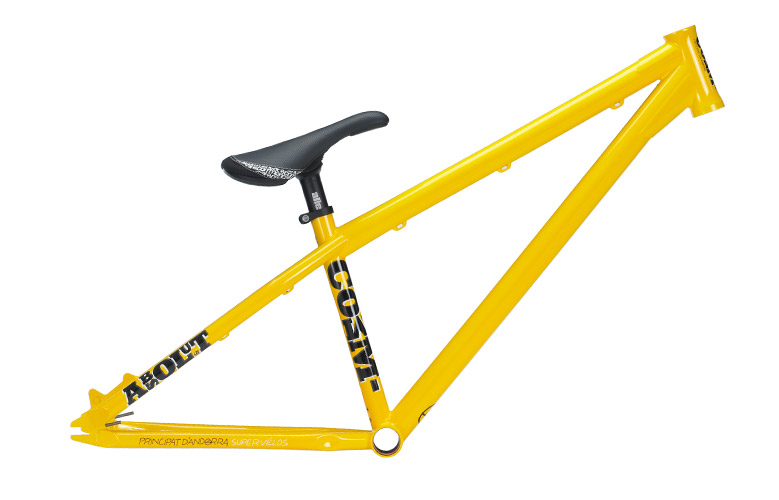

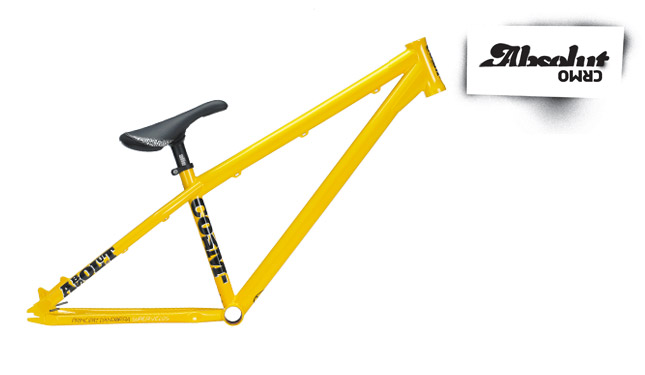

Lightweight, bombproof Dirt Jump and Urban use hardtail.
|
•
•
•
•
•
|
Nuts CrMo tubing with top/downtube gussets and horizontal dropouts
Includes Alienation Billy Club Pivotal seatpost, Commencal Pivotal saddle, sliding disc brake mount, FSA Orbit integrated headset, chain tensioner, and a seat tube clamp
Recommended fork length: 100mm-120mm
Weight: 5.68 lbs
MSRP $549.00 |
|
ZOOM
GEOMETRY
|
|
|
|
